Abstract class representing an WsAccessTree or WsMenuTree. More...

#include <WsAbstractTree.h>

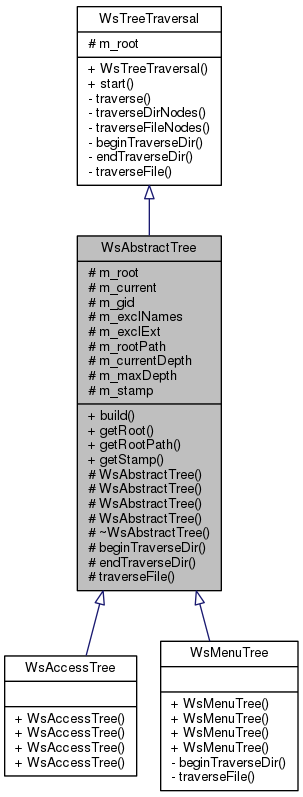

Inheritance diagram for WsAbstractTree:

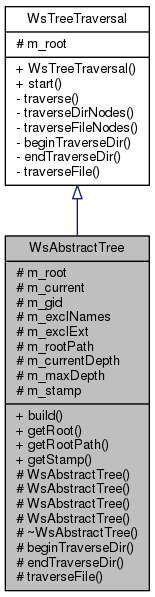

Collaboration diagram for WsAbstractTree:

Public Member Functions
virtual int	build ()
	Parses the fileSystemTree and builds the Tree containing only the nodes where the user has access. More...

virtual NodePtr	getRoot ()
	Returns the root node of the menuTree. More...

virtual path &	getRootPath ()
	get the root path More...

virtual const std::string &	getStamp ()
	Get the stamp of the tree. More...

int	start ()
	start traversing the Tree. More...

Protected Member Functions
	WsAbstractTree (FileSystemTreePtr fs, const std::set< std::string > &gid, const int &md, const path &rootPath, const std::string &stamp)
	Constructor for the Tree class. More...

	WsAbstractTree (FileSystemTreePtr fs, const std::set< std::string > &gid, const int &md, const std::set< std::string > &names, const std::set< std::string > &ext, const path &rootPath, const std::string &stamp)
	Constructor for the Tree class. More...

	WsAbstractTree (NodePtr n, const std::set< std::string > &gid, const int &md, const path &rootPath, const std::string &stamp)
	Constructor for the Tree class. More...

	WsAbstractTree (NodePtr n, const std::set< std::string > &gid, const int &md, const std::set< std::string > &names, const std::set< std::string > &ext, const path &rootPath, const std::string &stamp)
	Constructor for the Tree class. More...

	~WsAbstractTree ()
	Destructor. More...

virtual int	beginTraverseDir (NodePtr n)
	Called when a directory is being traversed. More...

virtual int	endTraverseDir (NodePtr n)
	Called when a directory has been completely traversed. ie all subnodes(recursively all sub nodes of subnodes etc..) have been traversed. More...

virtual int	traverseFile (NodePtr n)
	Called when traversing a fileNode. More...

Protected Attributes
NodePtr	m_root
	the root of the tree More...

NodePtr	m_current
	The current node (the current level):w. More...

std::set< std::string >	m_gid
	the gids of the user More...

std::set< std::string >	m_exclNames
	The excluded names. More...

std::set< std::string >	m_exclExt
	The excluded extensions. More...

path	m_rootPath
	The rootPath. More...

int	m_currentDepth
	The current depth of the tree (ie number of levels) More...

int	m_maxDepth
	The max depth of the tree (ie depth we don't want to exceed. More...

std::string	m_stamp
	The stamp of the tree. More...

Detailed Description

Abstract class representing an WsAccessTree or WsMenuTree.

This class should be derived and is used as parent for WsAccessTree and WsMenuTree

Definition at line 27 of file WsAbstractTree.h.

Constructor & Destructor Documentation

WsAbstractTree::WsAbstractTree	(	FileSystemTreePtr	fs,
		const std::set< std::string > &	gid,
		const int &	md,
		const path &	rootPath,
		const std::string &	stamp
	)

protected

Constructor for the Tree class.

Parameters

fs	the fileSystemTree to use
gid	a std::set of group names/ids of the user
md	max depth default is no max depth (0)
rootPath	the root path
stamp	the unique stamp of the tree

WsAbstractTree::WsAbstractTree	(	FileSystemTreePtr	fs,
		const std::set< std::string > &	gid,
		const int &	md,
		const std::set< std::string > &	names,
		const std::set< std::string > &	ext,
		const path &	rootPath,
		const std::string &	stamp
	)

protected

Constructor for the Tree class.

Parameters

fs	the fileSystemTree to use
gid	a std::set of group names/ids of the user
names	the excluded names
ext	the excluded extensions
rootPath	the root path
stamp	the unique stamp of the tree

WsAbstractTree::WsAbstractTree	(	NodePtr	n,
		const std::set< std::string > &	gid,
		const int &	md,
		const path &	rootPath,
		const std::string &	stamp
	)

protected

Constructor for the Tree class.

Parameters

n	the Root node of the tree
gid	a std::set of group names/ids of the user
md	max depth default is no max depth (0)
rootPath	the root path
stamp	the unique stamp of the tree

WsAbstractTree::WsAbstractTree	(	NodePtr	n,
		const std::set< std::string > &	gid,
		const int &	md,
		const std::set< std::string > &	names,
		const std::set< std::string > &	ext,
		const path &	rootPath,
		const std::string &	stamp
	)

protected

Constructor for the Tree class.

Parameters

n	the root node
gid	a std::set of group names/ids of the user
names	the excluded names
ext	the excluded extensions
rootPath	the root path
stamp	the unique stamp of the tree

WsAbstractTree::~WsAbstractTree ( )

protected

Destructor.

Definition at line 62 of file WsAbstractTree.cpp.

Member Function Documentation

int WsAbstractTree::beginTraverseDir ( NodePtr n )

protectedvirtual

Called when a directory is being traversed.

Parameters

n	the NodePtr representing the directory being traversed

Returns: SUCCESS or FAILURE if an error occured

Implements WsTreeTraversal.

Definition at line 76 of file WsAbstractTree.cpp.

int WsAbstractTree::build ( )

virtual

Parses the fileSystemTree and builds the Tree containing only the nodes where the user has access.

Returns: SUCCESS if the tree was built without errors, FAILURE otherwise

Definition at line 66 of file WsAbstractTree.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

int WsAbstractTree::endTraverseDir ( NodePtr n )

protectedvirtual

Called when a directory has been completely traversed. ie all subnodes(recursively all sub nodes of subnodes etc..) have been traversed.

Parameters

n	The NodePtr representing the directory that has been completely traversed

Returns: SUCCESS or FAILURE

Implements WsTreeTraversal.

Definition at line 121 of file WsAbstractTree.cpp.

NodePtr WsAbstractTree::getRoot ( )

virtual

Returns the root node of the menuTree.

Returns: Pointer to the root of the menuTree

Definition at line 71 of file WsAbstractTree.cpp.

Here is the caller graph for this function:

path & WsAbstractTree::getRootPath ( )

virtual

get the root path

Returns: boost::filesystem::path representing the rootPath

Definition at line 157 of file WsAbstractTree.cpp.

const string & WsAbstractTree::getStamp ( )

virtual

Get the stamp of the tree.

Returns: A std::string containing the stamp

Definition at line 162 of file WsAbstractTree.cpp.

int WsTreeTraversal::start ( )

inherited

start traversing the Tree.

Definition at line 21 of file WsTreeTraversal.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

int WsAbstractTree::traverseFile ( NodePtr n )

protectedvirtual

Called when traversing a fileNode.

Parameters

n	A NodePtr representing the file being traversed

Returns: SUCCESS or FAILURE

Implements WsTreeTraversal.

Definition at line 129 of file WsAbstractTree.cpp.

Member Data Documentation

NodePtr WsAbstractTree::m_current

protected

The current node (the current level):w.

Definition at line 103 of file WsAbstractTree.h.

int WsAbstractTree::m_currentDepth

protected

The current depth of the tree (ie number of levels)

Definition at line 129 of file WsAbstractTree.h.

std::set<std::string> WsAbstractTree::m_exclExt

protected

The excluded extensions.

Definition at line 118 of file WsAbstractTree.h.

std::set<std::string> WsAbstractTree::m_exclNames

protected

The excluded names.

Definition at line 113 of file WsAbstractTree.h.

std::set<std::string> WsAbstractTree::m_gid

protected

the gids of the user

Definition at line 108 of file WsAbstractTree.h.

int WsAbstractTree::m_maxDepth

protected

The max depth of the tree (ie depth we don't want to exceed.

Definition at line 135 of file WsAbstractTree.h.

NodePtr WsAbstractTree::m_root

protected

the root of the tree

Definition at line 98 of file WsAbstractTree.h.

path WsAbstractTree::m_rootPath

protected

The rootPath.

Definition at line 123 of file WsAbstractTree.h.

std::string WsAbstractTree::m_stamp

protected

The stamp of the tree.

Definition at line 141 of file WsAbstractTree.h.

The documentation for this class was generated from the following files:

/Users/benoitdaccache/Documents/Dropbox/Programming/Ws/wscore/src/Tree/WsAbstractTree.h
/Users/benoitdaccache/Documents/Dropbox/Programming/Ws/wscore/src/Tree/WsAbstractTree.cpp
